Deep at the core of modern electronic devices lies a crucial signal — the clock signal. Like an invisible conductor, it precisely coordinates the operational rhythm of every component, from the CPU and memory to high-speed interfaces. However, when this "heartbeat" signal needs to propagate across a complex circuit board, it can grow weak, blurred, or even out of sync — and this is where the clock buffer comes into play. Today, let’s delve into this key "conductor’s assistant" and uncover how it empowers devices to operate at high speeds.
The difficulties faced by clock signals during transmission include:
Signal Attenuation: The signal’s energy weakens after long-distance transmission or when split into multiple lines (fan-out), resulting in blurred waveforms.
Signal Jitter: Unpredictable tiny time drifts occur at the clock edges, similar to an unstable heartbeat of a conductor, leading to miscoordination between components.
Signal Skew: Differences in the time it takes for the signal to reach different destinations, causing misalignment in state reading between circuits.
Noise Interference: Electromagnetic interference from adjacent signal lines further contaminates the already fragile clock signal.
Without proper management, these flaws can directly slow down the entire system’s response, cause data errors, or even lead to system crashes.

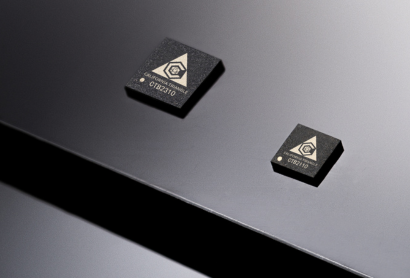

A clock buffer is essentially an integrated circuit (IC) designed specifically to handle clock signals. It does not create a new rhythm; instead, it focuses on receiving an input clock signal, reshaping and amplifying it, then outputting one or more robust, clean, low-jitter clock copies.
Its core values lie in:
Signal Reshaping and Enhancement: Receiving weakened signals, reshaping their steep, square waveforms, and significantly reducing jitter and noise.
Signal Amplification and Driving: Providing strong output current to ensure the clock signal reaches multiple downstream chips stably.
Precise Fan-Out Distribution: Converting a single input into multiple outputs, allowing a single high-quality signal to cover more loads while maintaining perfect alignment (low skew) between different outputs.
Interface Adaptation and Conversion: Some high-performance buffers can also seamlessly convert signals between different voltage levels (e.g., LVDS to HCSL).
Key parameters for evaluating a clock buffer’s quality include:
Jitter: The uncertainty of clock edges. A lower value means a more stable signal and greater timing margin for digital systems (measured at the picosecond level).
Output Skew: The difference in arrival time between multiple output signals. Strict control of this indicator is essential to ensure synchronized activation of all components (strict matching is critical).
Operating Frequency Range: The upper limit of clock signal speeds supported by the buffer.
Power Consumption and Power Supply Noise Rejection: Low energy consumption and high tolerance to power fluctuations are the foundations of stable operation.
Output Impedance Matching: Precise matching of transmission line impedance enables reflection-free signal transmission.
Thanks to its unique capabilities, the clock buffer has become a core component in these high-speed electronic devices:
Data Center Servers: Ensuring perfect signal synchronization between the CPU and massive memory modules during multi-channel high-speed communication.
High-Performance Graphics Cards: Providing ultra-low-jitter clocks for GPU cores and video memory to support smooth, real-time output of complex graphics rendering.
5G/6G Communication Base Stations: Guaranteeing precise timing in millimeter-wave high-frequency signal processing and data transmission links.
High-Speed Network Devices: Enabling low-jitter clock transmission between 400G/800G optical modules and switch chips.
Choosing the right clock buffer requires considering:
What is the upper frequency limit required by the system?
How many loads need to be driven?
What is the maximum tolerable jitter and skew?
Does the output voltage level (LVDS, HCSL, LVCMOS, etc.) match?
What are the system’s power supply voltage and power consumption limits?
New-generation clock buffers are integrating Phase-Locked Loop (PLL) technology, featuring frequency synthesis capabilities and supporting highly programmable configurations, providing more flexible and powerful solutions for coming systems.plex tim
The clock buffer may seem like an unremarkable small component, but it is the silent cornerstone enabling high-performance digital devices to operate stably and respond at high speeds. As an extension and protector of the clock tree, it ensures that every functional unit in a complex system is activated at the right moment through precise signal distribution and strong driving capability, working in harmony to improve efficiency. Understanding and configuring it correctly can inject powerful, precise momentum into your device.
Is your device operating at the edge of high performance? Delve into checking the system’s clock tree design and selecting a low-jitter, low-skew clock buffer that fits — it may be the key gear to unlock the ultimate speed bottleneck. Remember, no matter how fast the processor is, it needs a precisely beating heart — and the clock buffer is the strongest support for this heart.
