The Network Time Protocol (NTP) provides timing accuracy within a few milliseconds, which is sufficient for many general-purpose systems. However, the Precision Time Protocol (PTP) offers significantly greater accuracy—down to less than a microsecond, even reaching nanosecond precision. This level of precision becomes essential in certain specialized environments.
While NTP is suitable for typical networked devices such as workstations, laptops, or for monitoring purposes, PTP is designed for situations where precise timing coordination is critical.
Utility providers that adjust rates based on time-of-use periods
Financial systems that rely on precise timing for rapid transactions
Industrial automation where machinery and robotics must operate in synchronized stages
Real-time audio and video systems requiring tight synchronization to maintain quality
PTP can operate over existing Ethernet or IP-based networks. It can run directly on Ethernet or use UDP/IP for message transport.
PTP is standardized under the IEEE 1588 specification. The first version was published in 2002. A major revision followed in 2008—often referred to as Version 2—which introduced significant changes and is not compatible with the original release. The latest revision, introduced in 2019, maintains compatibility with Version 2 while incorporating additional enhancements.
Due to varying time synchronization requirements across industries, multiple profiles exist to tailor PTP for specific use cases:
This is the general-purpose configuration used when no specialized timing requirements are present.
Designed for communication networks, this profile supports synchronization over wide-area infrastructures, ensuring consistency across distributed systems.
Tailored for electrical power environments, this profile supports precise timing for grid monitoring, control operations, and measurement synchronization.
Focused on transmitting time-sensitive content like audio and video over Ethernet, this profile ensures accurate synchronization in media streaming and live production setups.
The general-purpose profile supports both Layer 2 and Layer 3 communication. In contrast, profiles for power systems and real-time media rely only on Layer 2.
VLAN tagging is supported in the general and power system profiles, but not in the media synchronization profile.
The default profile allows non-synchronization-aware devices in the network, whereas other profiles typically require all devices in the timing path to support PTP.
Additional distinctions include:
Frequency of timing message exchanges
Types of clocks used
Specific operational parameters
To achieve extremely precise synchronization—down to the nanosecond—it is essential to account for various types of delay that affect timing accuracy:
Propagation delay: The time it takes for a signal to travel through a cable or fiber
Queueing delay: Delays caused by network congestion or interface buffering
Processing delay: Internal time needed by network devices to handle packet inspection or routing
These delays can cause timestamp inaccuracies. Fortunately, PTP includes mechanisms to measure and compensate for these delays, helping maintain synchronization accuracy.
The protocol performs best when supported by dedicated hardware. Network interfaces with built-in timing features provide hardware-level timestamping, minimizing variability. Software-based implementations, while possible, introduce more timing jitter due to OS scheduling and processing overhead.
Timestamping is most accurate when performed close to the physical layer of the network hardware, reducing delay and variation.
PTP uses the same epoch as Unix time—starting from January 1, 1970—but is based on International Atomic Time (TAI) rather than Coordinated Universal Time (UTC). TAI is a continuous time scale unaffected by leap seconds. Since UTC includes leap seconds, PTP provides the current offset between TAI and UTC, enabling accurate conversion when necessary.
To synchronize time between systems, PTP measures the time delay between two clocks. These clocks have defined roles: one acts as the master (providing time), and the other adjusts its clock accordingly as the slave.
Newer revisions of the standard (e.g., 2022 updates) are beginning to use the terms timeTransmitter and timeReceiver instead of master/slave. While this change reflects evolving inclusive language practices, the traditional terms remain widely used and will be retained here for clarity.
The synchronization process involves exchanging several timestamped messages. These allow the receiving clock to calculate both the time offset and the delay between itself and the master. Based on these values, the clock then adjusts to align with the reference source.
Precision Time Protocol defines four main types of clocks, each serving a specific purpose:

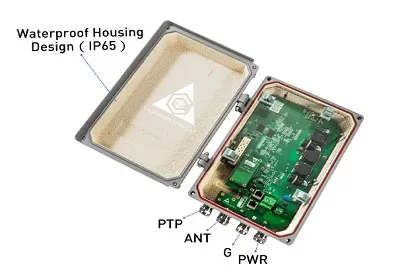

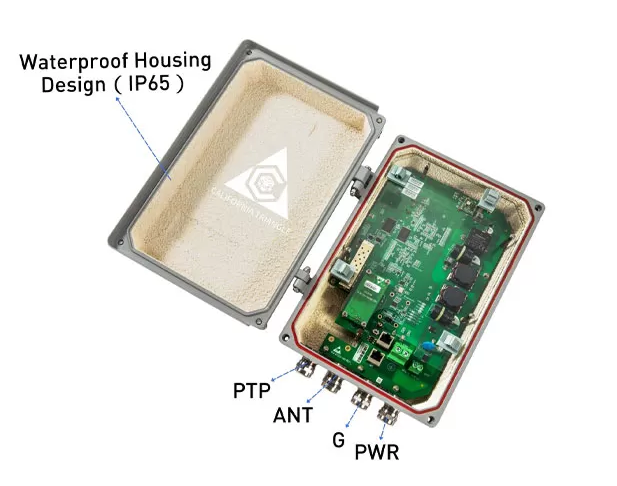

Acts as the ultimate time reference for the entire timing domain
Typically draws time from a satellite-based signal or atomic reference
All connected devices align to the GMC, either directly or via intermediate clocks
All its ports operate in the master role
Implements PTP on a single network interface
That interface can act as slave (most common for end devices) or master (if passing timing downstream)
Commonly used in endpoints such as servers, instruments, or controllers
Uses PTP on two or more interfaces, connecting separate network segments
The upstream port (toward the grandmaster) operates as a slave
Downstream ports operate as masters, distributing time to other devices
Useful for isolating traffic and reducing direct communication with the grandmaster
Each additional BC adds another synchronization layer; its accuracy depends on the quality of its own synchronization
Forwards timing packets while compensating for internal switch delay (residence time)
Does not generate or adjust time on its own
Cannot bridge different network segments
There are two variants:
| Variant | Delay Measurement Method | Use Case |
|---|---|---|
| End-to-End (E2E) | Tracks total packet residence time in the switch and adds it to the correction field | Suitable for flat topologies where few clients communicate directly with the grandmaster |
| Peer-to-Peer (P2P) | Measures delay per link using short message exchanges with immediate neighbors; also records residence time | Preferred for large or hierarchical networks to reduce load on the grandmaster |
In small-scale, flat networks with just a few clients, E2E transparent clocks are sufficient. Each ordinary clock exchanges delay-measurement messages directly with the grandmaster, keeping overall traffic low.
In large-scale or tree-shaped networks (with hundreds of clients and multiple aggregation layers), P2P is preferred. Delay calculations occur link-by-link, so the grandmaster handles timing packets only from its immediate neighbors—greatly reducing message volume and improving scalability.
By combining these clock types strategically—placing grandmasters at the root, boundary clocks at segment junctions, and transparent clocks inside switches—you can extend nanosecond-level synchronization across complex networks without overwhelming any single device.
In Precision Time Protocol (PTP), communication between devices happens through specific message types, each serving a unique purpose. These messages fall into two main categories:
Event Messages – Time-sensitive and timestamped
General Messages – Used for control and management, not timestamped
These are crucial for synchronizing time between devices. Each event message is timestamped, allowing devices to measure delay and offset with high precision.
Sent periodically by the master clock.
In one-step mode, this message includes the precise time it was transmitted (T1).
In two-step mode, the timestamp is omitted here and sent in a separate message.
Sent by the master clock immediately after a sync message in two-step mode.
It includes the accurate transmission time of the preceding sync message (T1).
Sent by the slave clock to the master.
This message is used to initiate delay measurement, helping the slave calculate round-trip time.
The master replies to a delay request with this message.
It includes the time the delay request was received (T4), allowing the slave to compute path delay.
These messages support protocol functionality but do not require precise timing. They are not timestamped.
Broadcast by the grandmaster clock, sharing information about its identity, accuracy, and quality.
These messages are essential for the Best Master Clock Algorithm (BMCA) to decide which device becomes master.
Used to read from or write to the device’s PTP Management Information Base (MIB).
Helpful for administrative tasks and diagnostics.
Supports non-timing communication between clocks.
For example, it can be used to request changes in sync or announce message intervals.
Together, these messages allow PTP devices to maintain tight synchronization, select the most suitable time source, and manage timing operations across the network.
PTP relies on a four-step handshake to determine both the offset between master and slave and the network propagation delay:
Master sends a Sync packet and (in two-step mode) records the departure timestamp T1.
In two-step implementations, the Follow_Up message carries the precise T1. One-step devices embed T1 directly in the Sync message.
Slave sends a Delay_Req packet at its local time T2.
Master responds with Delay_Resp, containing the receipt timestamp T3.
When the slave receives the Delay_Resp, it records the arrival timestamp T4. The one-way delay τ and offset θ are then computed as:
τ = [(T2 - T1) + (T4 - T3)] / 2,
θ = (T2 - T1) - τ.
By applying this correction, the slave adjusts its clock phase and frequency to align with the master.
Phase alignment alone isn’t sufficient; frequency control is key to maintaining long-term synchronization. PTP slaves implement servo loops (often PI or PID controllers) to modulate local oscillators:
Error Measurement: Offset corrections derived from message exchanges feed the servo.
Control Action: The servo computes frequency adjustments, driving a Phase-Locked Loop (PLL) or Digitally Controlled Oscillator (DCO).
Drift Compensation: Averaging filters and adaptive gains mitigate noise while responding to temperature-induced oscillator drift.
Advanced implementations incorporate temperature-compensated crystal oscillators (TCXOs) or oven-controlled crystal oscillators (OCXOs) to further reduce drift baseline.
Despite its elegance, PTP faces several practical hurdles:
Non-identical uplink and downlink delays—common in asymmetric fiber deployments—introduce static bias. Solutions include:
Manual Calibration: Pre-measuring cable lengths and adding static delay corrections.
Delay-Measurement Probes: Specialized test equipment to quantify per-link asymmetry.
ITU‑T G.8271 Profiles: Define network-capable methods for automatic asymmetry compensation.
Bursty or high-priority data can prolong queuing delays within switches. Mitigation strategies:
Time-Sensitive Networking (TSN): IEEE 802.1Qbv (Scheduled Traffic) ensures PTP packets receive dedicated microsecond-precision timeslots.
Cut-Through Forwarding: Reduces switch-induced latency compared to store-and-forward.
Packet Classification: Hardware-based priority tagging for PTP messages.
Original IEEE 1588 lacks built-in authentication, exposing networks to spoofing or replay attacks. Contemporary best practices:
Annex P (Security): Adds HMAC-based message authentication.
MACsec / IPsec: Encrypts PTP traffic on layer 2 or 3.
Multi-Source Validation: Combining GNSS references (GPS, Galileo) with PTP to detect anomalies.
To ensure interoperability across industries, PTP profiles constrain configuration parameters:
Power Profile (IEEE C37.238): Tailored for power utility automation, recommending boundary clocks in substation networks.
Telecom Profile (ITU-T G.8275.1 / G.8275.2): Specifies optional Best Master settings, dwell times, and TC functionality for mobile backhaul.
Enterprise Profile (IEEE 1588 Annex F): Simplifies PTP for LAN-based applications, with relaxed jitter and delay requirements.
Profiles standardize VLAN tags, multicast addresses, message intervals, and servo parameters—streamlining multi-vendor deployments.
As networks evolve, PTP adapts to new paradigms:
5G and Beyond: Fronthaul synchronization demands nanosecond precision over packet-switched networks. PTP complements enhanced CPRI (eCPRI) transport, enabling distributed radio units to maintain coherent phase alignment.
Cloud and Virtualization: Software-based PTP clients leverage hypervisor-assisted hardware timestamping, while Precision Time Measurement (PTM) technologies push accuracy deeper into virtualized environments.
Industrial IoT and TSN: Converged OT/IT networks rely on PTP for synchronous motion control, robotics, and safety interlocks. TSN standards ensure bounded latency for control traffic alongside PTP.
PTP continues to evolve to meet ever-tightening accuracy, resilience, and security demands:
Nano-PTP: Research into opaque hardware timestamp engines and optical time-distribution networks aims for single-digit nanosecond or even sub-nanosecond jitter floors.
Adaptive Profiles: AI-driven dynamic tuning of message intervals and servo parameters to react in real time to network conditions.
Quantum Clock Sources: Integration of chip-scale atomic clocks to provide ultra-stable references in GPS-denied environments.
Enhanced Security Frameworks: Post-quantum cryptography and distributed ledger validation of time-source attestations.
Precision Time Protocol has transcended its original scope to become an indispensable component of modern deterministic networking and high-precision systems. Through a combination of hardware timestamping, efficient messaging, robust clock selection, and adaptive control algorithms, PTP delivers synchronization performance unachievable by traditional methods. While implementation challenges—such as asymmetry compensation, jitter mitigation, and security—remain active areas of innovation, standardized profiles and cross-industry collaboration continue to streamline deployment. As future applications push the frontier of temporal accuracy, PTP stands ready to ensure that every node, device, and subsystem operates in lockstep harmony.
