Introduction to the Five Key Differences Between OCXOs and Ordinary Crystal Oscillators

In the field of electronic engineering, crystal oscillators are key components that ensure precise timing and stable operation of electronic devices. Among them, Oven-Controlled Crystal Oscillators (OCXOs) and ordinary crystal oscillators are widely used due to their differences in stability and applications. This article elaborates on the differences between the two.

I. Differences in Working Principles:

1. Ordinary crystal oscillators

   They generate frequencies using the piezoelectric effect of quartz  crystals but are significantly affected by ambient temperature, resulting  in relatively low frequency stability.

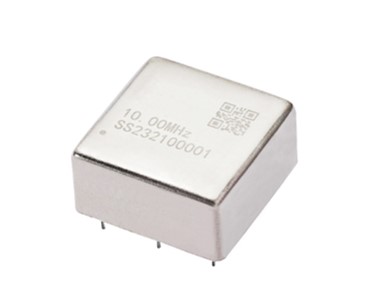

2. OCXOs

   OCXOs use a built-in oven control circuit to maintain the oscillator at a constant temperature, greatly reducing temperature’s impact on oscillation frequency. This design grants them higher frequency stability.

II. Differences in Application Fields:

1. Ordinary crystal oscillators

   Suitable for electronic devices with lower frequency requirements, such as household appliances and general communication equipment. Their low cost enables wide application.

2. OCXOs

   Used in fields demanding extremely high frequency accuracy and stability, such as satellite communications, military and aerospace equipment, and precision measuring  instruments. In these scenarios, OCXOs’ high stability is critical.

III. Differences in Temperature Stability:

1. Ordinary crystal  oscillators

   Have poor temperature stability and are easily affected by external temperature changes.

2. OCXOs

   Boast extremely high temperature stability, typically reaching ±0.005 ppm or better.

IV. Differences in Price and Complexity:

1. Ordinary crystal oscillators

   Relatively inexpensive, simple in structure, and suitable for mass production.

2. OCXOs

   More costly and complex in design due to the need for sophisticated oven control systems and multi-layer board designs.

V. Differences in Startup Time:

1. Ordinary crystal oscillators

   Quickly reach a stable state after startup, making them suitable for devices requiring rapid startup.

2. OCXOs

   Require a warm-up period to achieve optimal performance, usually taking several minutes or  longer to stabilize temperature.

In summary, OCXOs and ordinary crystal oscillators each have pros and cons. The choice depends on the frequency accuracy and stability requirements of specific applications. Ordinary crystal oscillators suffice for general use, while OCXOs are indispensable in highly demanding professional fields. Understanding these differences facilitates rational selection in practice.
