In the era of digital infrastructure, network timing has evolved from a supporting function into a mission-critical capability. Whether it is 5G base station coordination, financial transaction timestamping, industrial automation, satellite communication, or smart grids, synchronization accuracy directly impacts security, performance, compliance, and operational continuity. Among the various time synchronization protocols in use today, Network Time Protocol (NTP) and Precision Time Protocol (PTP) stand out as the two most widely adopted standards. Their technical characteristics, deployment complexity, and precision levels define the boundaries of their applications. Understanding the differences between them has become essential for enterprises planning next-generation networks.
NTP, originally developed in the early 1980s, is one of the oldest internet protocols still in active use. It operates at the application layer and is designed to synchronize clocks over packet-switched, variable-latency data networks. Typical accuracy ranges from milliseconds to tens of milliseconds, sufficient for everyday IT infrastructure, enterprise applications, and basic logging.
NTP operates in a hierarchical structure of Stratum levels, starting from atomic clocks or GPS receivers as Stratum 0, cascading down to Stratum 3 or 4 servers. It uses time offset and network delay calculations to adjust system clocks gradually. Since NTP runs in software and does not require dedicated hardware timestamping, deployment cost is relatively low. However, its reliance on standard network paths, susceptibility to jitter, and lack of built-in microsecond precision make it unsuitable for industries requiring deterministic timing.
PTP, defined by IEEE 1588, was created to address environments that require microsecond to nanosecond-level precision. It relies on hardware timestamping, transparent clocks, boundary clocks, and network-level correction to achieve precision synchronization. Combined with GNSS or atomic clock inputs, PTP can achieve sub-microsecond or even picosecond-level accuracy.
Unlike NTP, PTP can operate at Layer 2 or Layer 3, reducing network latency influence. It also supports one-step or two-step synchronization, making it adaptable to different switching environments. The implementation of PTP often involves specialized hardware such as timing chips, FPGA-based timestamping modules, oscillators with holdover performance, and switches supporting IEEE 1588v2. This enables improved robustness against transmission delay and asymmetric routing.
PTP deployment is widely seen in telecom networks, 5G TDD synchronization, broadcasting, power utility automation, aerospace, manufacturing automation, and other mission-critical sectors.
When comparing the two protocols, multiple technical factors highlight their divergent positioning:
Precision:
NTP typically delivers 1–50ms precision.
PTP can achieve 1µs to 100ns, and in advanced systems with optimized hardware, even below 10ns.
Timestamp Source:
NTP timestamps are processed at the application layer, leading to higher latency variability.
PTP timestamps use NICs, PHY, or switch-level timestamp injection, minimizing latency impact.
Network Dependencies:
NTP depends on general network traffic, sensitive to jitter and congestion.
PTP relies on transparent and boundary clocks to correct delay and manage network symmetry.
Deployment Requirements:
NTP requires almost no dedicated hardware.
PTP benefits from IEEE 1588-aware switches, disciplined oscillators, and sometimes redundant GNSS receivers.
Cost and Complexity:
NTP is inexpensive to deploy and widely supported across OS and devices.
PTP incurs higher costs due to hardware dependence but is indispensable where precision is required.
Security:
Both protocols can be hardened with encryption or network isolation, but PTP offers better control over timing integrity due to its deterministic mechanisms.
Scalability:
NTP is suitable for legacy networks and broad-scale synchronization with modest precision needs.
PTP excels in segment-based precision delivery where tight synchronization and deterministic latency are required.
Time Division Duplexing (TDD) and radio access networks require phase and frequency synchronization in microsecond or nanosecond ranges. PTP, especially with ITU-T G.8275.1/G.8265.1 profiles, is the dominant choice. NTP alone cannot meet telecom precision demands.
Substation automation, synchrophasor measurement (IEEE C37.118), IEC 61850, and demand response systems depend on high-precision time alignment. PTP grandmasters and GNSS holdover clocks are standard in modern power networks.
Regulations require timestamping accuracy within microseconds or sub-microseconds. PTP-based solutions outperform NTP in meeting compliance standards like MiFID II and FINRA.
Distributed services, logging correlation, and edge computing require tighter synchronization. Hybrid architectures using both NTP and PTP are emerging, with PTP used for critical systems.
SCADA, robotics, and factory networks need deterministic timing and low-latency communication. PTP is increasingly integrated with Time Sensitive Networking (TSN).
Audio-video synchronization over IP (e.g., SMPTE ST 2059) depends on PTP for frame alignment and delay control.
Systems with mission-critical timing requirements combine GNSS, atomic oscillators, and PTP to ensure accuracy and signal integrity.
Many enterprises are transitioning from pure NTP to layered timing structures. GNSS-synchronized grandmasters distribute PTP to high-precision nodes and NTP to legacy IT infrastructure. Boundary clocks extend coverage without degrading precision. PTP with holdover oscillators mitigates GNSS disruption risks.
Emerging trends include:
PTP over 5G networks to synchronize baseband units
Timing as a Service (TaaS) for distributed enterprises
AI-driven timing error detection
Edge-based synchronization for IoT clusters
Integration of atomic clocks with timing servers
Enterprises typically evaluate timing strategies based on:
Required precision (milliseconds vs microseconds vs nanoseconds)
Existing network architecture
Hardware support for timestamping
Regulatory compliance
Budget constraints
Security posture and attack resilience
Scalability and manageability
For general IT systems, NTP remains sufficient. For telecom, energy, finance, industrial automation, smart transportation, and mission-critical systems, PTP is often mandatory.
As demand for synchronized data and real-time processing grows, timing accuracy will become a competitive differentiator. PTP will continue to replace NTP in high-precision industries, while both will coexist in layered deployments. GNSS-independent timing resilience, chip-level timestamping, and ultra-low jitter hardware will shape next-generation network synchronization strategies.
Enterprises seeking sustainable and scalable timing infrastructure must evaluate both protocols and plan long-term architecture upgrades that balance precision, cost, and reliability.
NTP and PTP are not rivals but tools designed for different performance levels. As industries adopt 5G, smart grids, digital finance, and autonomous systems, precise time will become the invisible backbone of innovation. The choice between NTP and PTP depends on operational needs, latency tolerance, and precision requirements. Forward-looking organizations are implementing hybrid and hardware-assisted timing strategies to ensure long-term stability and scalability.

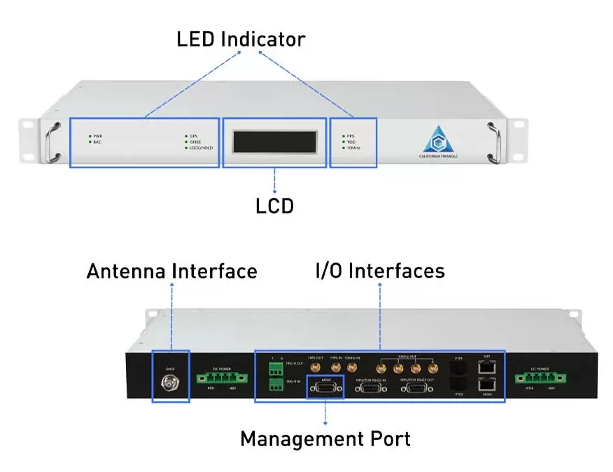

California Triangle provides high-performance timing technologies, including clock chips, atomic oscillators, PTP grandmasters, and custom synchronization solutions to meet the evolving demands of precision networks.
