The rapid evolution of 5G New Radio (5G-NR) technology has intensified the demand for ultra-precise timing and phase synchronization across telecommunication networks. Achieving the full spectrum of 5G capabilities—particularly in scenarios involving time division duplexing (TDD) and carrier aggregation—depends heavily on a synchronization infrastructure that delivers both frequency and phase alignment. Two dominant technologies fulfill this role in mobile base stations: Precision Time Protocol (PTP) and Synchronous Ethernet (SyncE). Although both aim to synchronize clocks within the network, they fundamentally differ in their operational principles, deployment requirements, and synchronization performance.
Synchronous Ethernet, commonly known as SyncE, traces its heritage to legacy transport networks such as the Plesiochronous Digital Hierarchy (PDH) and Synchronous Digital Hierarchy (SDH). Operating at the physical layer (Layer 1), SyncE embeds timing information directly into the electrical or optical signals transmitted across fiber or copper connections. Unlike packet-based timestamping methods, SyncE derives synchronization from the periodic transitions of the physical waveform.
The timing reference for SyncE typically originates from a highly stable source, such as a GPS-disciplined oscillator or a cesium clock. This reference governs the frequency of the transmitted signal pulses, ensuring the clock frequency remains constant across the network’s backbone. At receiving devices, clock recovery circuits extract the timing from signal edges, regenerating a local clock closely synchronized in frequency to the master source.
A protocol that communicates synchronization quality indicators (Quality Level, QL) among network nodes. These indicators allow equipment to select the highest quality timing source dynamically, facilitating seamless failover and redundancy.
While SyncE provides robust and stable frequency synchronization, its key limitation lies in its inability to deliver phase synchronization. This means that although clocks run at the same frequency, their timing reference points (phase) may differ, which can adversely affect technologies that rely on phase alignment, such as TDD radio deployments in 5G.
Moreover, SyncE requires that all intermediate network devices support synchronization propagation, imposing hardware upgrade demands and limiting network topology flexibility. Signal degradation and jitter can accumulate over multiple network hops, potentially diminishing timing quality toward the network edge.
In contrast, the Precision Time Protocol (PTP), standardized as IEEE 1588 version 2, operates at the data link layer (Layer 2) or higher, employing a packet-based mechanism to deliver both frequency and phase synchronization with sub-microsecond accuracy. PTP is specifically designed to synchronize distributed clocks throughout packet-switched networks without necessitating specialized physical-layer support on every device along the path.

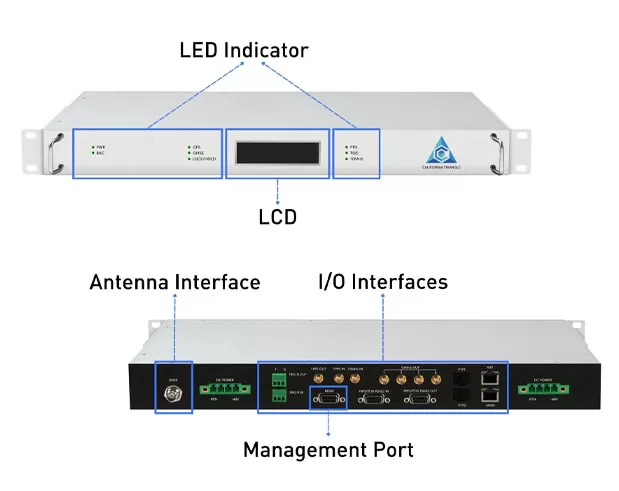

At the heart of PTP lies the Grandmaster clock, which derives accurate time from a reliable external source, often GPS. The Grandmaster sends timestamped synchronization messages—called Sync packets—to slave clocks distributed at the network’s edge. Through an exchange of Sync, Delay Request, and Delay Response messages, slave clocks gather precise timing information, including four key timestamps that allow them to calculate both the offset from the Grandmaster and network propagation delay.
The slave clocks then adjust their local time to align in both frequency and phase with the Grandmaster. This method enables PTP to achieve synchronization accuracy on the order of nanoseconds, sufficient to support the stringent timing requirements of modern mobile networks.
One of the critical challenges faced by PTP is dealing with asymmetrical delay in network paths, where the time taken for packets to travel upstream and downstream differs due to network topology or equipment characteristics. Since PTP’s offset calculations assume symmetrical delay, such asymmetry can lead to timing errors and degraded synchronization precision.
To counter this, network operators often deploy techniques such as hardware timestamping, network calibration, or use of Transparent Clocks that measure and compensate for residence times in intermediate devices. SyncE, by relying on physical layer timing recovery, is inherently less affected by delay asymmetry but cannot resolve phase alignment, which is essential for TDD operation.
SyncE utilizes ESMC messages to advertise synchronization quality levels, enabling equipment to select the best available timing source and perform rapid failover in case of primary timing source failure. This approach provides resilience in frequency synchronization but lacks phase alignment management.
PTP incorporates the Best Master Clock Algorithm (BMCA), an election protocol that dynamically identifies the most suitable Grandmaster clock based on parameters such as clock quality, priority settings, and network conditions. BMCA ensures continuous and robust synchronization by facilitating seamless handover between master clocks when necessary.
SyncE is often preferred in transport network backbones where physical layer synchronization is already implemented and offers very stable frequency distribution. However, its reliance on all network devices supporting SyncE limits scalability and deployment flexibility in heterogeneous or packet-centric networks.
PTP’s versatility makes it the de facto choice for 5G radio access networks and data centers, where phase synchronization is critical and the infrastructure consists of mixed-vendor packet equipment. The combination of SyncE and PTP is also common; SyncE can provide highly stable frequency reference at the core, while PTP distributes precise time and phase information to edge devices.
While SyncE’s physical layer nature renders it less susceptible to direct cyber-attacks, PTP is vulnerable to threats such as packet delay manipulation or spoofing, which can degrade network timing. Security measures including authentication, encryption, and network monitoring are therefore increasingly integrated into PTP deployments to safeguard synchronization integrity.
The convergence of SyncE and PTP technologies, alongside emerging standards like Time Sensitive Networking (TSN), heralds a future where ultra-precise, scalable, and secure synchronization is achievable over diverse network environments. Software-defined networking (SDN) and network function virtualization (NFV) will further enhance synchronization management and orchestration.
In conclusion, SyncE and PTP serve complementary roles in the synchronization ecosystem for modern 5G networks. SyncE provides robust frequency synchronization at the physical layer, ensuring stable clock frequency distribution, while PTP delivers flexible, scalable, and highly accurate frequency and phase synchronization over packet networks. The stringent timing demands of 5G—particularly for TDD and advanced radio technologies—require leveraging both technologies in harmony. Understanding their differences, advantages, and limitations is critical for network architects and engineers aiming to build reliable, high-performance synchronization infrastructures that unlock the full potential of 5G.
